Rincian produk
Tempat asal: Qingdao, Tiongkok
Nama merek: KXD
Sertifikasi: CE, ISO, SGS
Nomor model: S-0042
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 500 meter persegi
Harga: US$ 50-80 per square meter
Kemasan rincian: Massal untuk panel baja, palet baja untuk struktur baja, kotak kayu untuk aksesoris pemasangan kecil
Waktu pengiriman: 30-40 hari kerja
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 3000 Ton Per Bulan
Dimensi: |
Kebutuhan Pelanggan |
Pintu: |
pintu geser atau rolling door |
Warna: |
Permintaan Klien |
Kunjungan: |
Kunjungan lokakarya dan periksa ketersediaan |
Permukaan: |
Hot-dip galvanis / dicat |
Bingkai: |
Struktur Baja |
Waktu hidup: |
Lebih dari 50 tahun |
Jenis struktur: |
Rangka Struktur Baja Kekuatan Tinggi |
Nomor model: |
KXD-SSB130 |
Pembuatan prabelum: |
Di luar situs |
Pemasangan: |
cepat |
Dimensi: |
Kebutuhan Pelanggan |
Pintu: |
pintu geser atau rolling door |
Warna: |
Permintaan Klien |
Kunjungan: |
Kunjungan lokakarya dan periksa ketersediaan |
Permukaan: |
Hot-dip galvanis / dicat |
Bingkai: |
Struktur Baja |
Waktu hidup: |
Lebih dari 50 tahun |
Jenis struktur: |
Rangka Struktur Baja Kekuatan Tinggi |
Nomor model: |
KXD-SSB130 |
Pembuatan prabelum: |
Di luar situs |
Pemasangan: |
cepat |

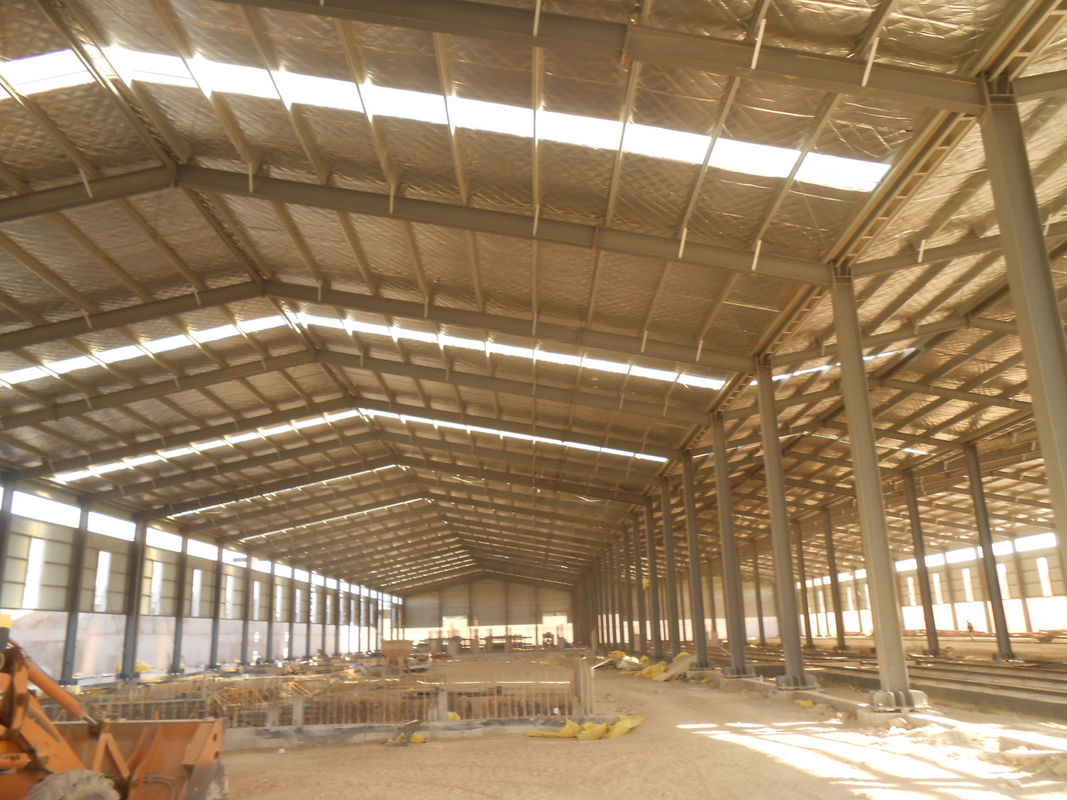

Steel Stucture Building Description:
Prefab steel structure house is generally done with a series of steel structure, including steel columns, steel beams, purlin and so on. These main components constitute the load-bearing structure of the house. Due to light weight and easy construction, there is a great demand for the structural steel house. The steel structure house, the most cost-efficient building, which plays one important role in construction field.
Nuts and Bolts are often considered to be an insignificant part of steel structure building, but this little part makes a big difference. Nuts and Bolts are the primary tools used to hold together the pieces of PEB construction together. There are numerous kinds of nuts and bolts available in the market for construction purposes, and they play a significant role in the PEB companies and industries. So the quality is also important in the whole building’s structure. Thus, screws are essentially important to hold the whole premise of Pre-engineered Steel Buildings together.
Items |
Specification |
|
Main steel frame | Column |
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50) |
Beam |
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50) |
|
Secondary Frame | Purlin |
Q235 C and Z purlin (equivalent to S235JR, ASTM A36) |
knee bracing |
Q235 Angle Steel (equivalent to S235JR, ASTM A36) |
|
tie beam |
Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36) |
|
bracing |
Q235 Round Bar (equivalent to S235JR, ASTM A36) |
|
Cladding system | Roof Panel |
Insulated Sandwich Panel/ Corrugated Steel Sheet/ Skylight/ Ventilator |
Wall Panel |
Insulated Sandwich Panel/ Corrugated Steel Sheet/Glass curtain wall/ Parapet |
|
Window |
Aluminiumn Alloy Window/ PVC Window/ Sandwich Panel Window |
|
Door |
Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door |
|
steel structure service liftetime |
50-70 years |
KXD Company Service:
Visit and Check Service
You are warmly welcome to visit our factory before the order, during the production and in the loading.
Flexible Payment
Different payment term like T/T, LC, with FOB, CIF, CFR on options.
Design Service
For products, we accept the production exactly same as your own drawing details. Different standards or the equivalent exchange are both acceptable.
If you have only ideas, we could offer free architectural design and production for you.
Production Service
All raw materials are purchased from qualified mills and the materials quality should be checked when received.
Quality control will be done in each production progress to guarantee every steel component quality. And each component will packed and protected before the shippment.
Installation Support
We offer free assemble guide and solve any technical questions in the installing time.
If the client has the demands, we could also send our engineer to guide or send our installing team to install on site. Different plans are for clients' option.
KXD's Design Ability:
Our elite steel structure technology team is a repository of expertise and dedication, consisting of skilled technicians, meticulous manufacturers, and master welders. With vast expertise in all facets of steel structure technology, we promise precise and reliable technical support for complex warehouses, manufacturing plants, and commercial centers.
KXD's Production Ability:
Armed with cutting-edge tools and adhering to industry-leading standards, we ensure the structural integrity and premier performance of each creation. Driven by innovation, we merge unwavering professional ethics with an unstoppable drive to transform intricate engineering specifications into extraordinary steel masterpieces.
Welcome to Contact further & Visit!
